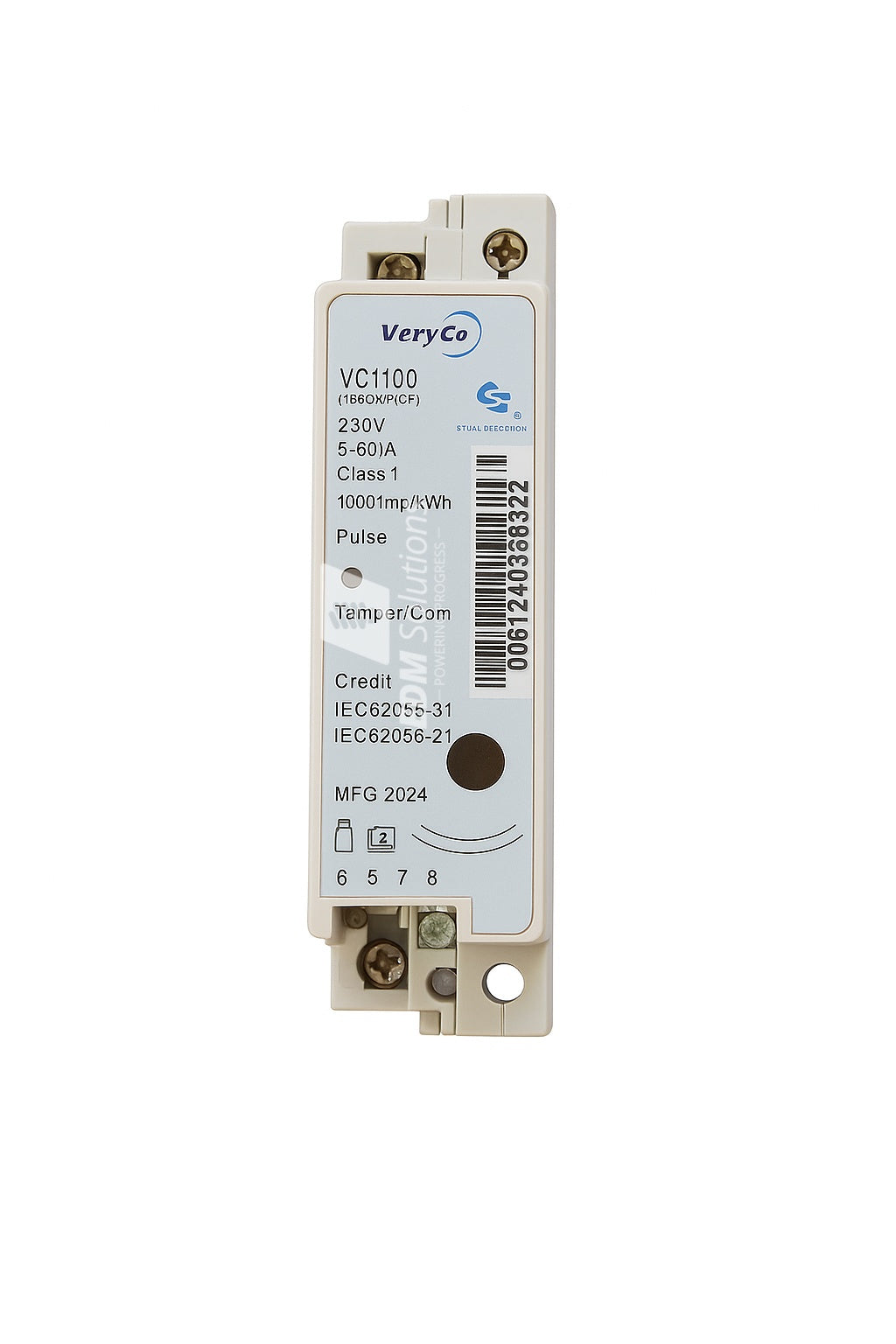

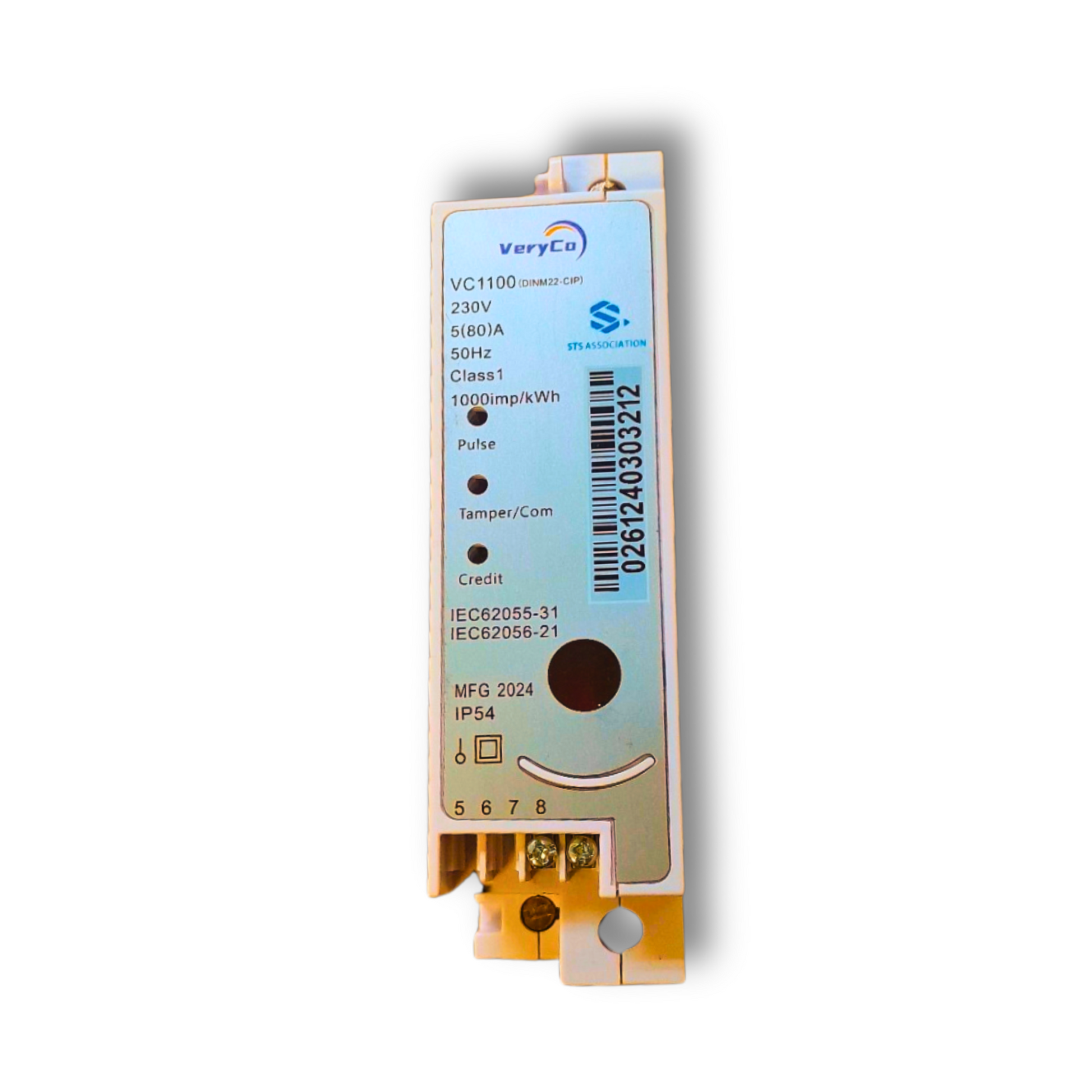

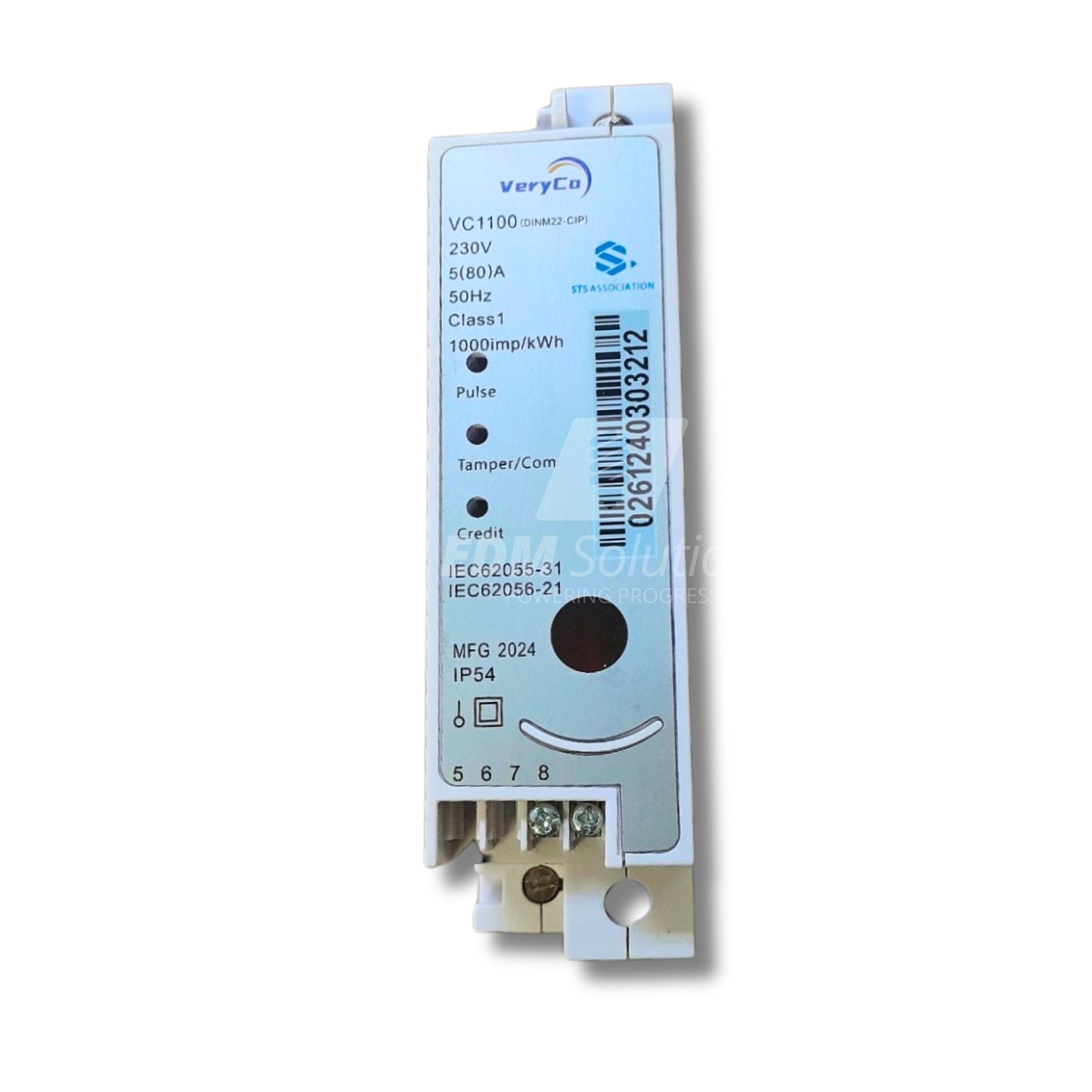

VC1100 DIN Rail Single Phase Prepaid Meter

Smart Prepaid Electricity Meter | RS485 & Ethernet Compatible | STS Certified

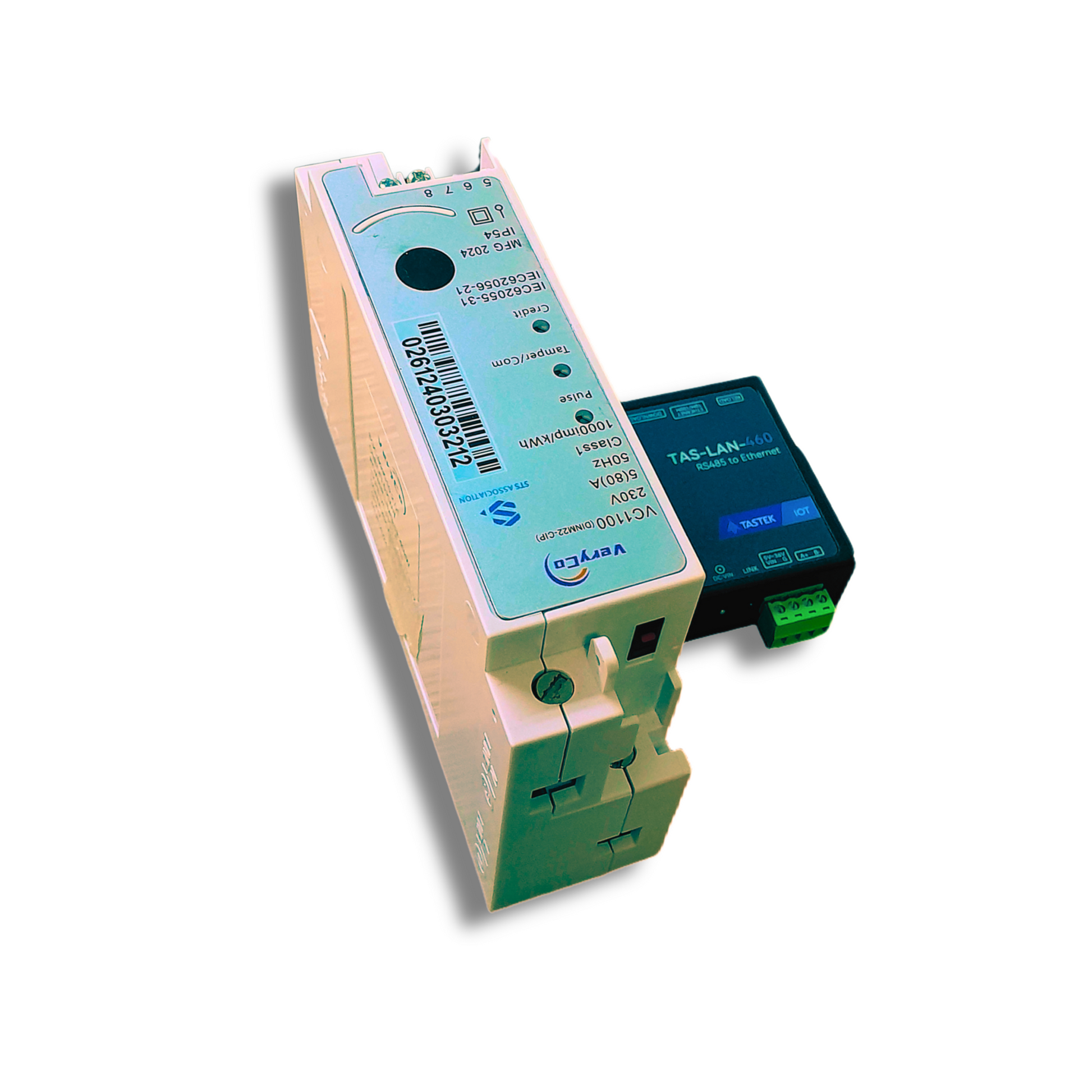

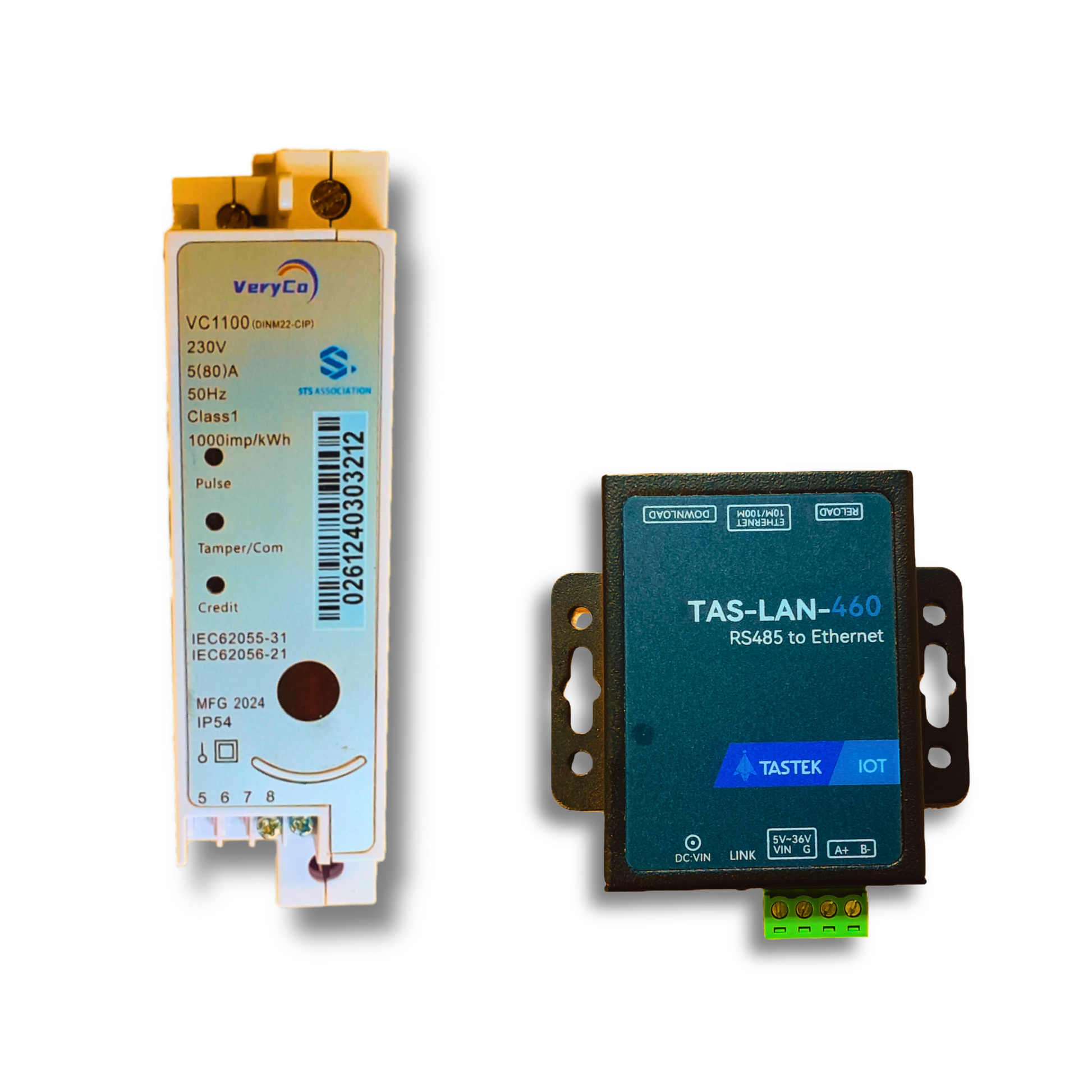

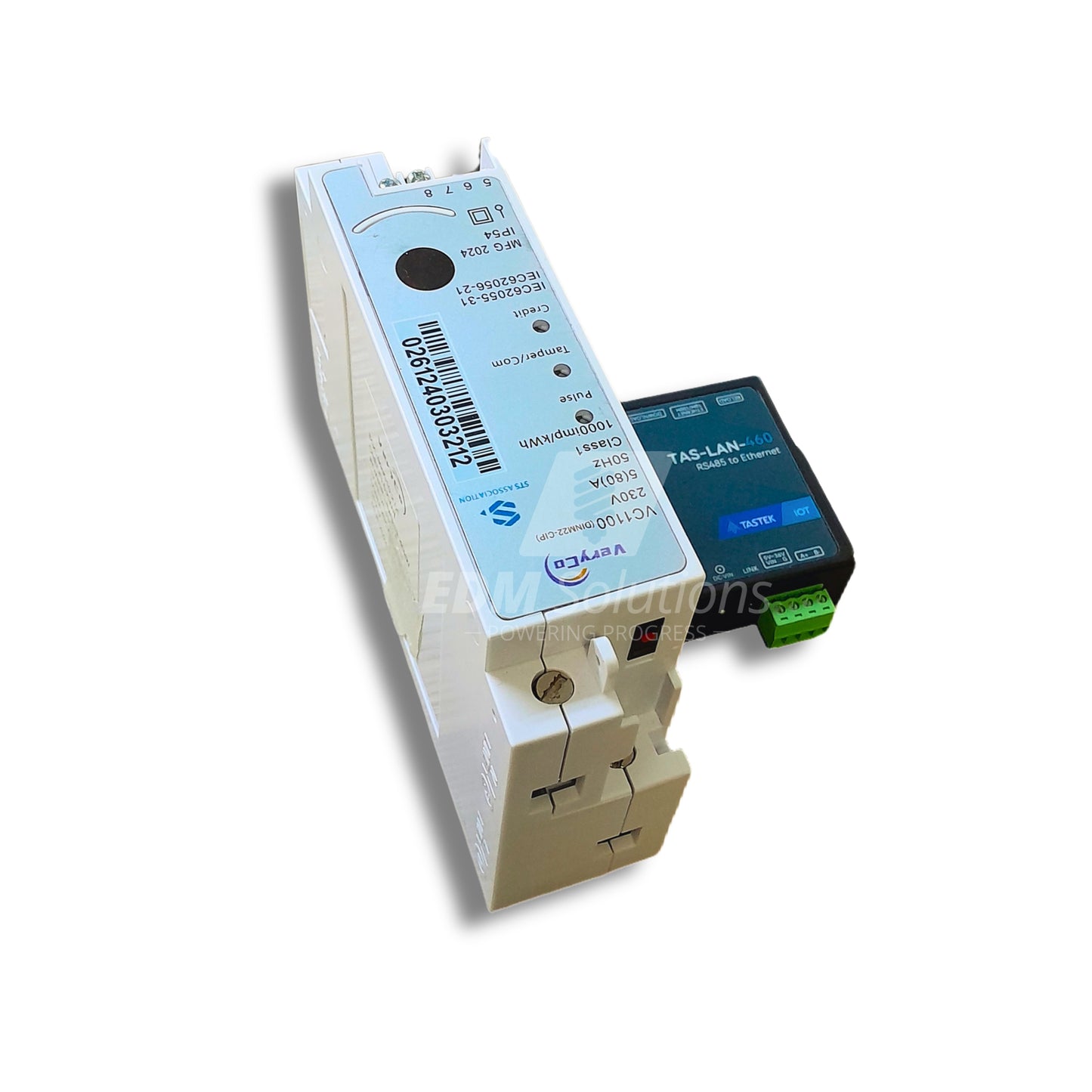

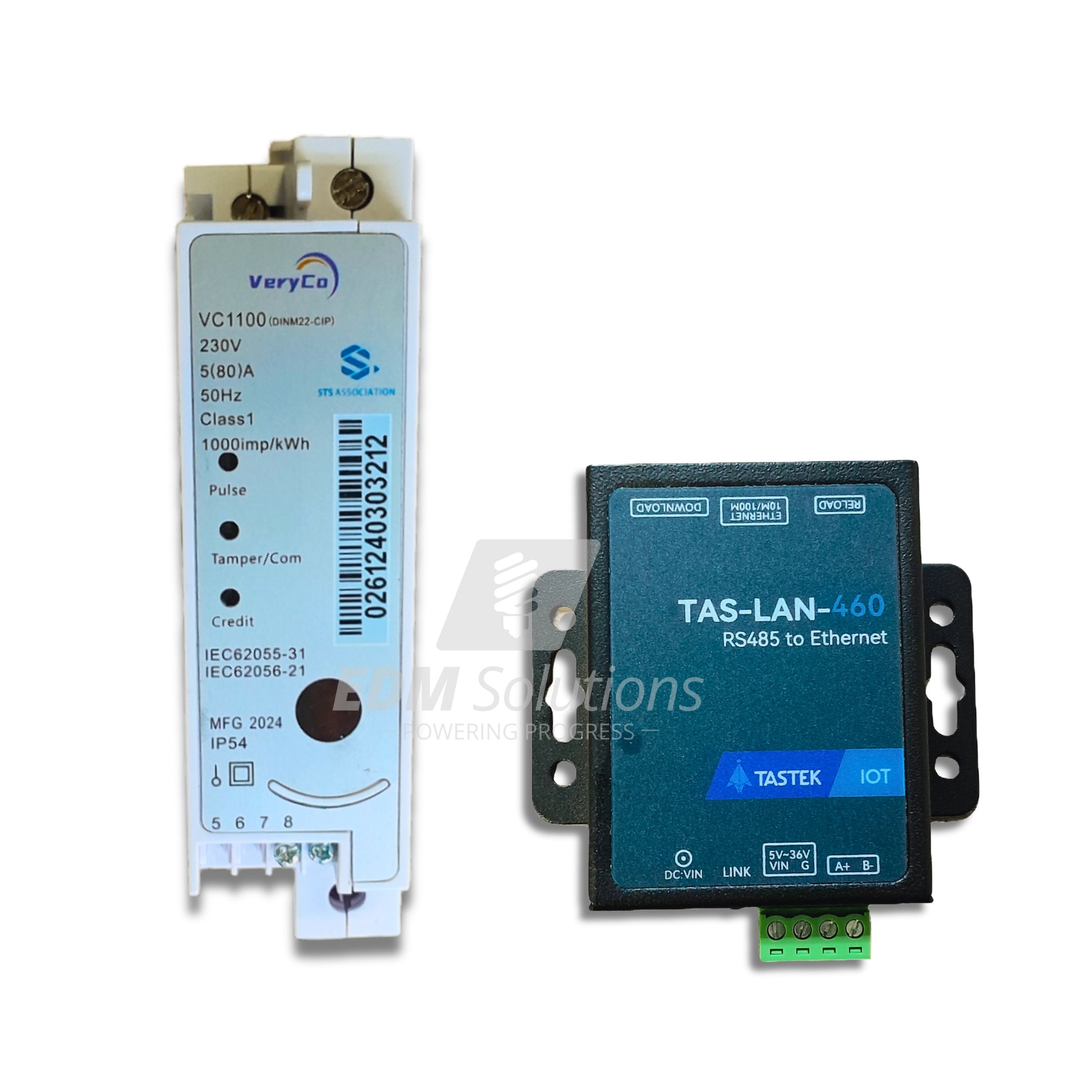

The VC1100 is a compact DIN Rail single-phase split smart prepayment meter designed for residential and light commercial energy monitoring. Engineered to meet modern utility needs, it combines robust STS-certified prepaid functionality with seamless integration for smart connectivity via RS485—ideal for use with the TAS-LAN-460 RS485 to Ethernet converter, enabling real-time remote monitoring and management.

✅ Key Features:

• Smart Connectivity: Supports RS485 communication for seamless integration with external smart systems using TAS-LAN-460.
• Prepaid & Postpaid Modes: Switchable between prepaid and postpaid operation for flexible utility management.
• STS/CTS Token-Based Prepayment: 20-digit secure token entry for prepaid top-ups via keypad.
• Tamper-Proof Design: Detects tampering like terminal cover removal, communication module interference, and magnetic fields.
• Friendly Functions: Emergency credit, low balance alerts (sound/light), and holiday modes.
• Multi-Protocol Support: Optical port, RS485, PLC, RF, or wired M-Bus communication options.
• Remote Firmware Upgrade: IEC 62056-21 compliant for meter and communication module updates.
